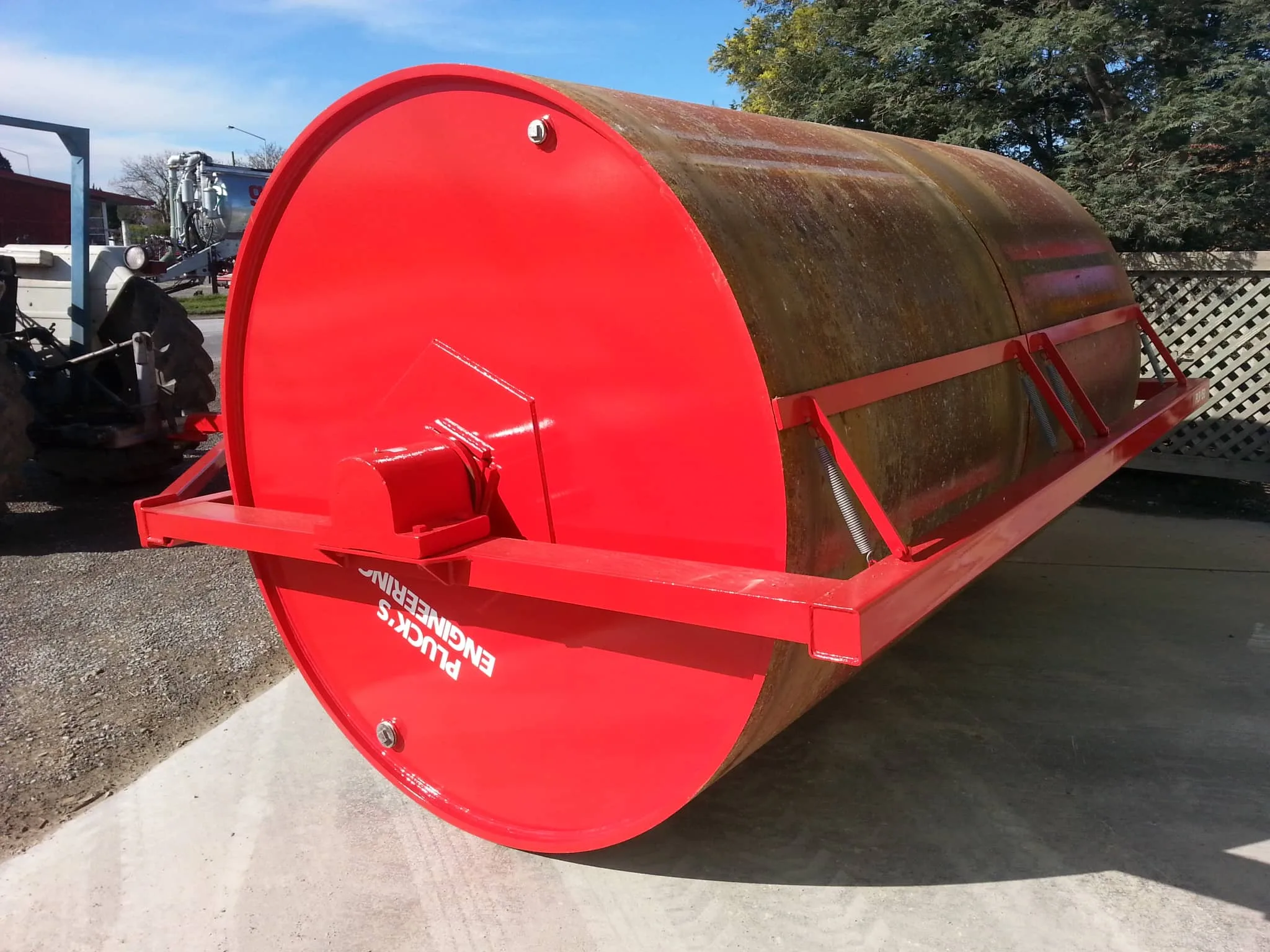

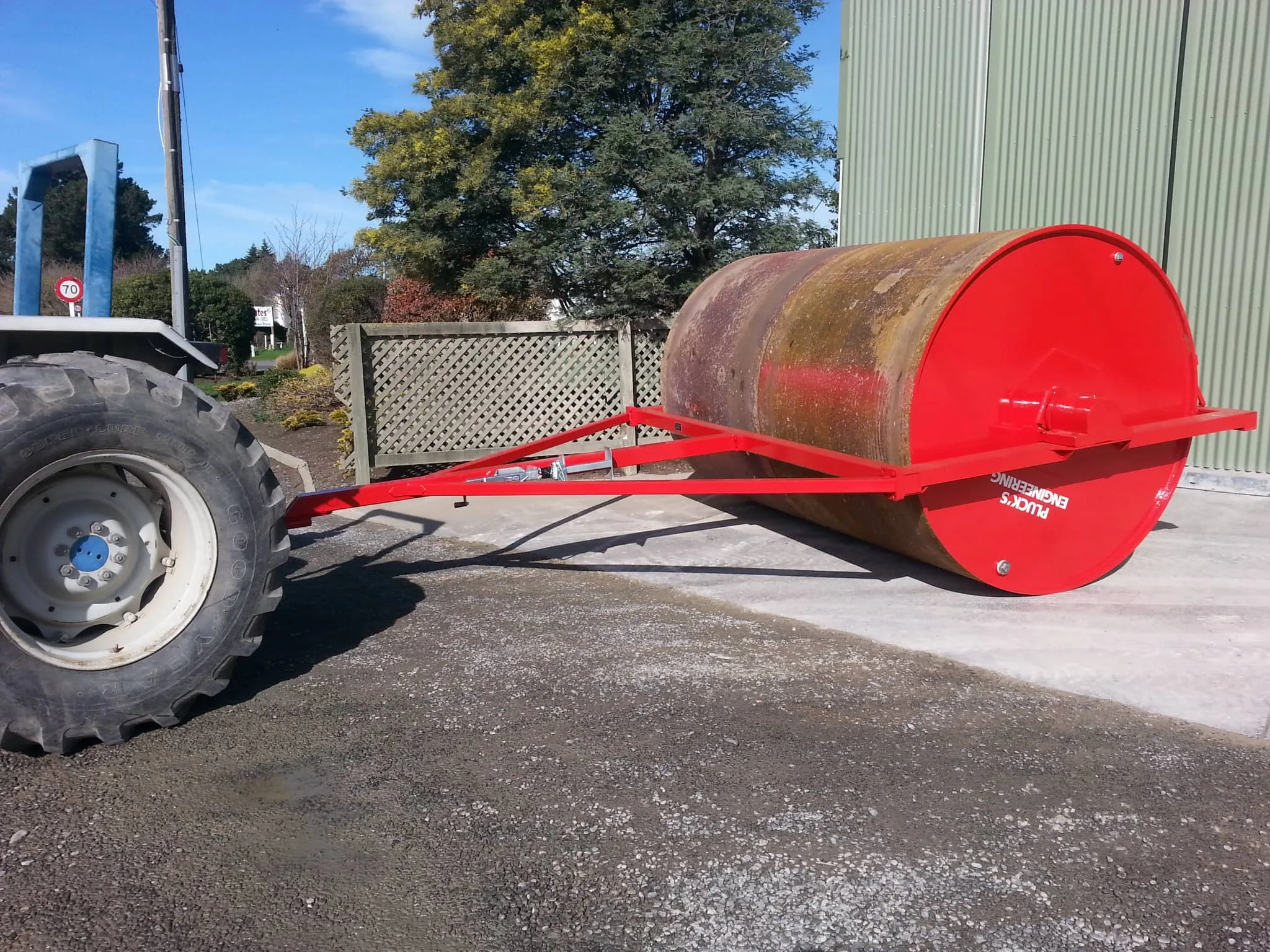

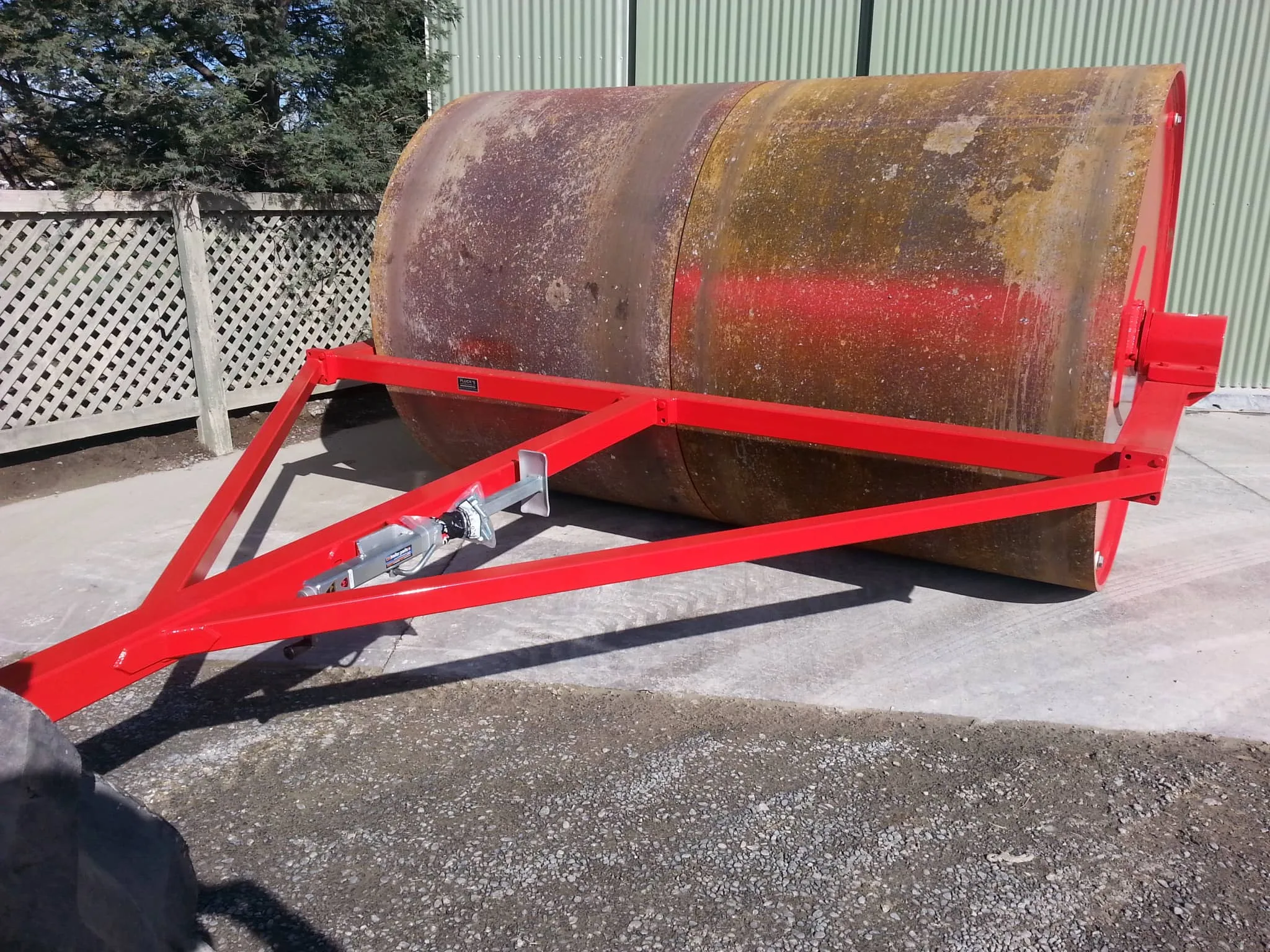

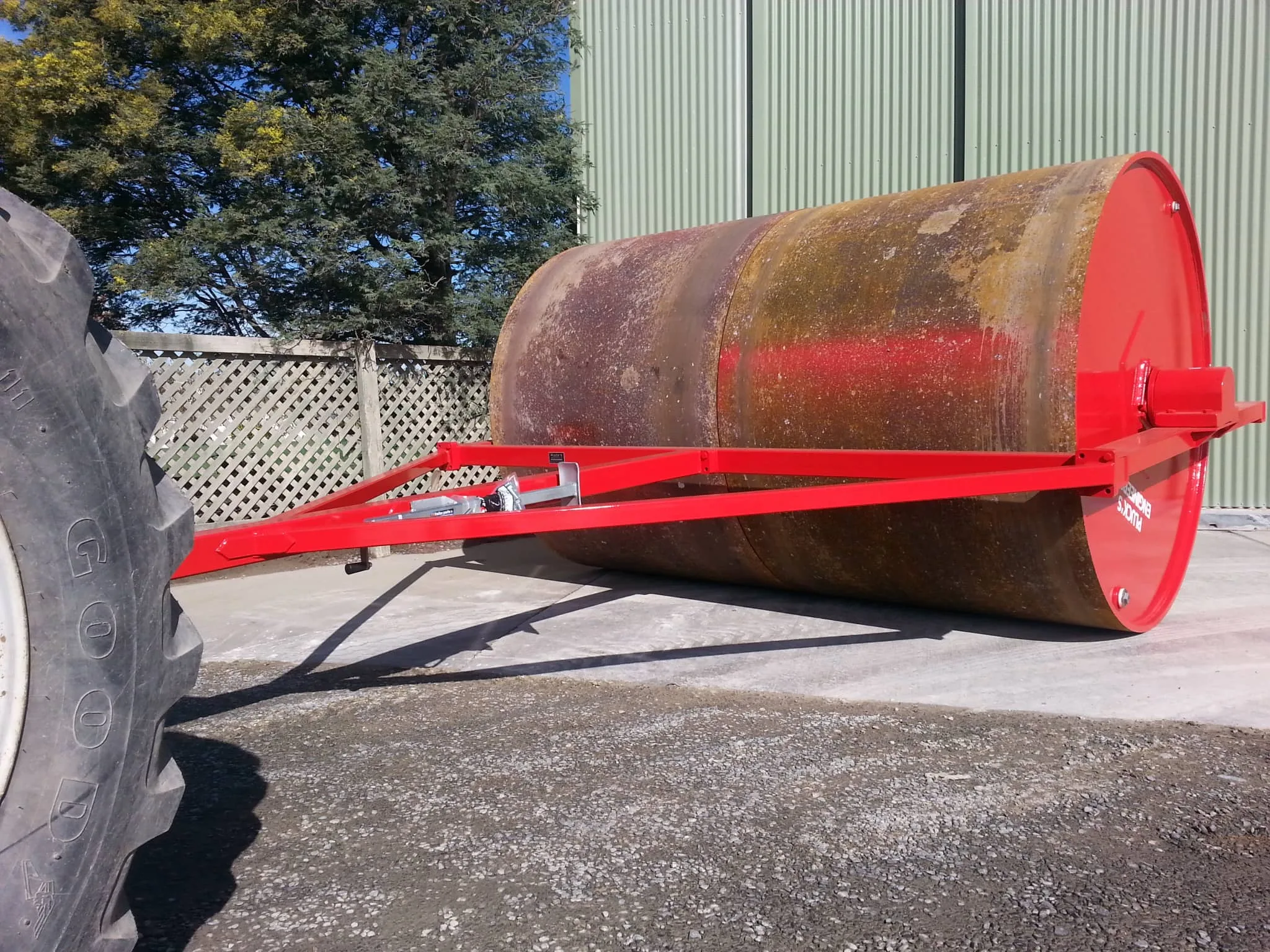

3.0m x 1.93m x 20mm Water Ballast Land Roller

3.0M (10ft) x 1.930M (6ft4”) x 16mm (5/8”) or 20mm (3/4”) or 25mm (1”)

This is one of the sizes in our standard range of Heavy Water Ballast Land Rollers and is very popular where a farmer needs a good-sized land roller but with quite a bit more weight than the standard smaller diameter rollers or ours.

  • Coverage - 3.0 meters (10ft) per pass
  • Frame width – 3.550 meters (11ft8”)
  • Diameter – 1.930M (6ft4”)
  • Roller Plate thickness – 16mm (5/8) or 20mm (3/4) or 25mm (1”)
  • Weight Full - 11650 Kgs
  • Weight Empty - 5100Kgs
  • Axle size - 150mm (6”)

Unique to Pluck’s is our very heavy-duty 150mm Axle because we know that from 48 years of manufacturing Land Rollers that with wider rollers, the crown in your road between farms or your laneways can be the reason that most heavy land roller axles break or at the very least cause your roller to crack around the centre area of the two drums. So we manufacture all our 1.930M (6ft4”) Diameter rollers with 150mm (6”) axles, so this makes them trouble-free for life on your farm.

They can be manufactured out of any size plate thickness from 16mm to 25mm if you have very stony or rocky ground.  Our standard size is a 20mm (3/4”) roller plate.

All our land rollers come with spring-loaded scrapers on the rear and a fold-up jack on the front, and a frame design that has stood the test of time to ensure trouble-free use for a lifetime on your farm and the next generation to come.

Why buy a Plucks Land Roller?

  • A Land Roller that won't let you down at the critical moment. Built to last for multiple generations.
  • Prepared and welded together by our qualified tradesmen to NZ welding standard (AS/NZS 2980) using a multiple run welding technique.
  • Our Roller sales experts will help you choose from a range of plate thicknesses, diameters, weights and widths to suit your farm requirements.
Video
Play Video
placeholder-img

What size Heavy Roller do I need?

Size will be determined by:

  • Stone size - how big your stones are will affect what plate thickness you need:
    - 16mm (shingle up to fist size)
    - 20mm (fist up to pumpkin)
    - 25mm (rugby ball or bigger)
    - no stones or swampy
  • Horsepower of tractor; it's important to match your towing capacity to the weight of roller
  • If your land has rolling, undulating hills or it's flat (if your tractor is 4WD, this also influences the roller model).

There's nothing worse than machinery letting you down at the critical moment. Don't settle for imitations.

Call today on 0800 758 257 or click the button to send an enquiry.

plucks-heavy-rollers

Pluck’s Heavy Roller Brochure

The complete guide and go-to source for everything you need to know about Pluck's Heavy Land Rollers.
