Bale Feeder. Double Layer, Single Row

Just One Moving Part!

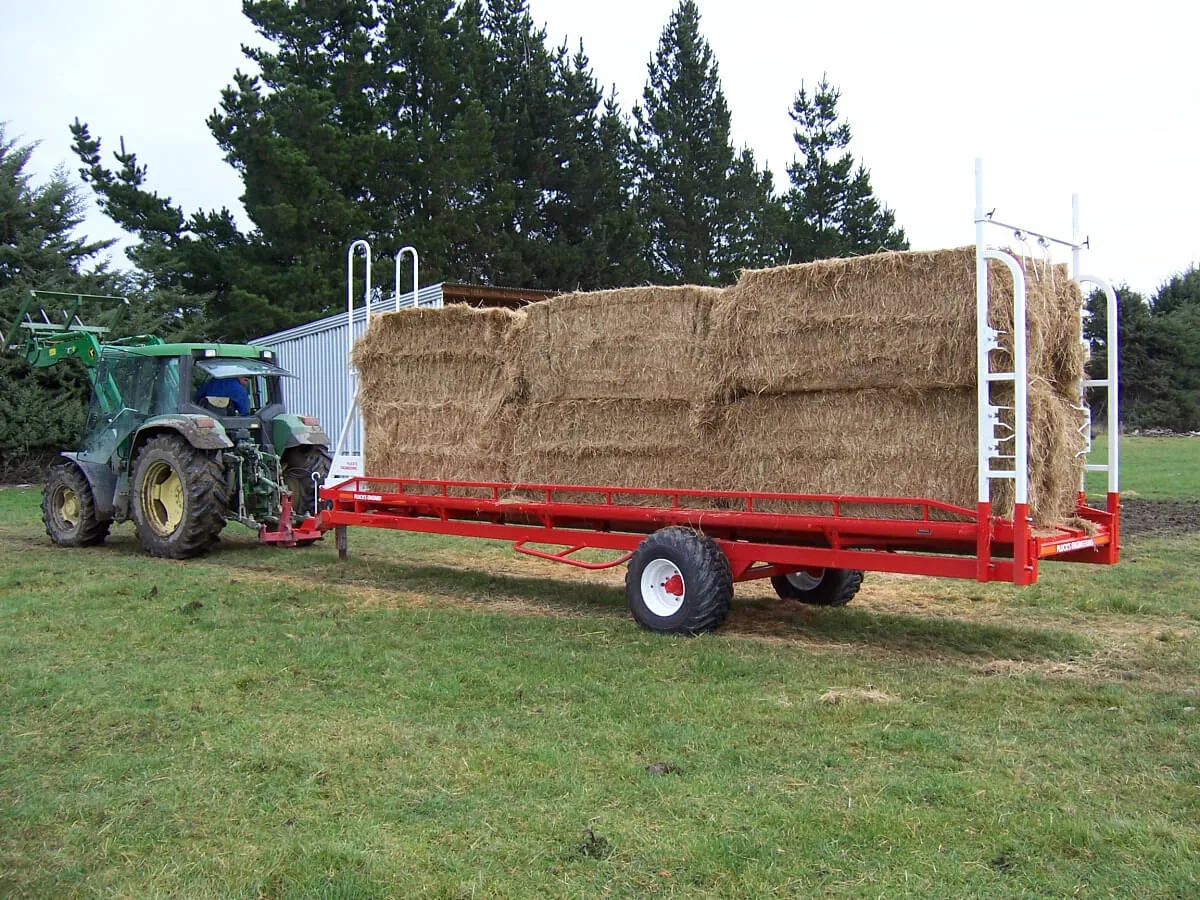

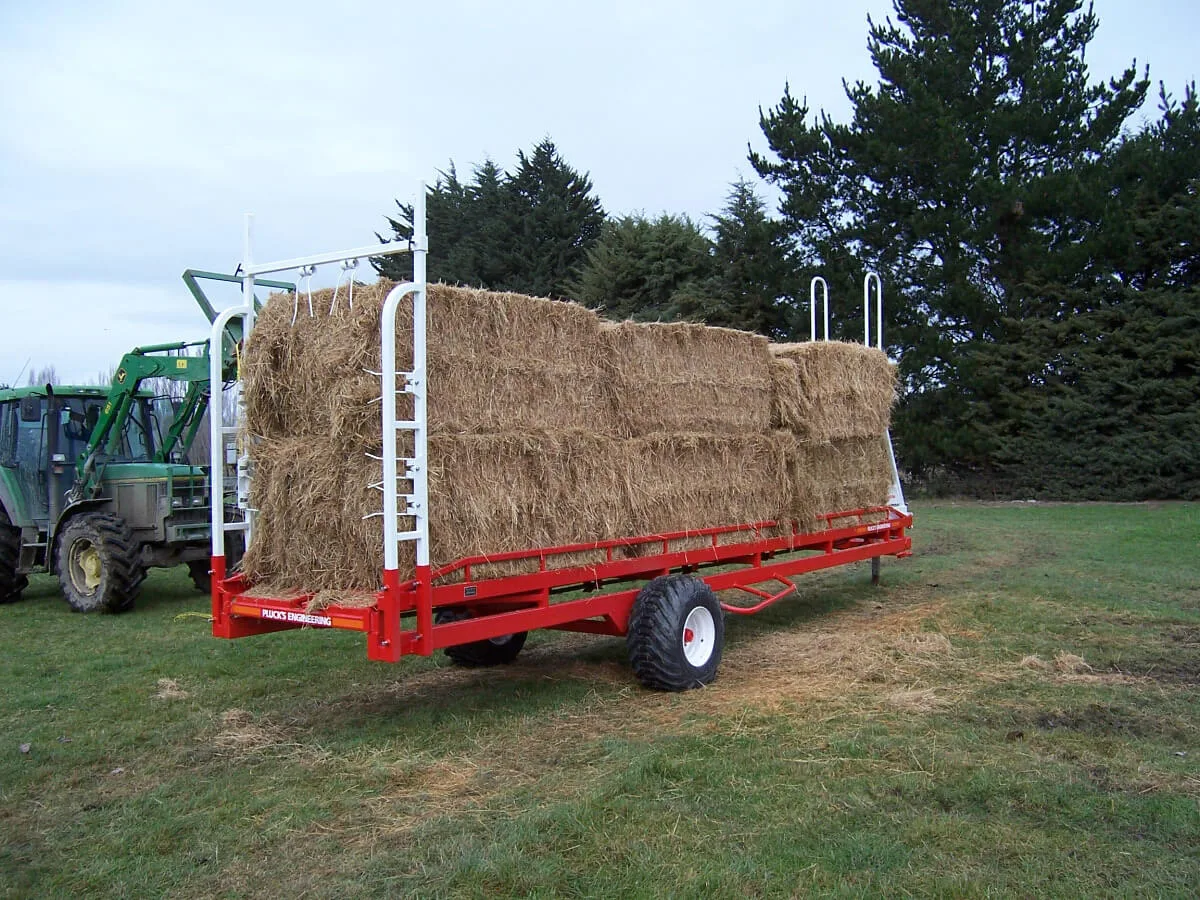

Our Single Row, Double Layer, Square bale feeder can carry and feed out 4 of Bailage bale’s and 3 or more of Big square Straw bales up to 2.2 Meters long each on the top layer, or any combination of both on either layer that don’t exceed the working deck length of 7.1 Meters.

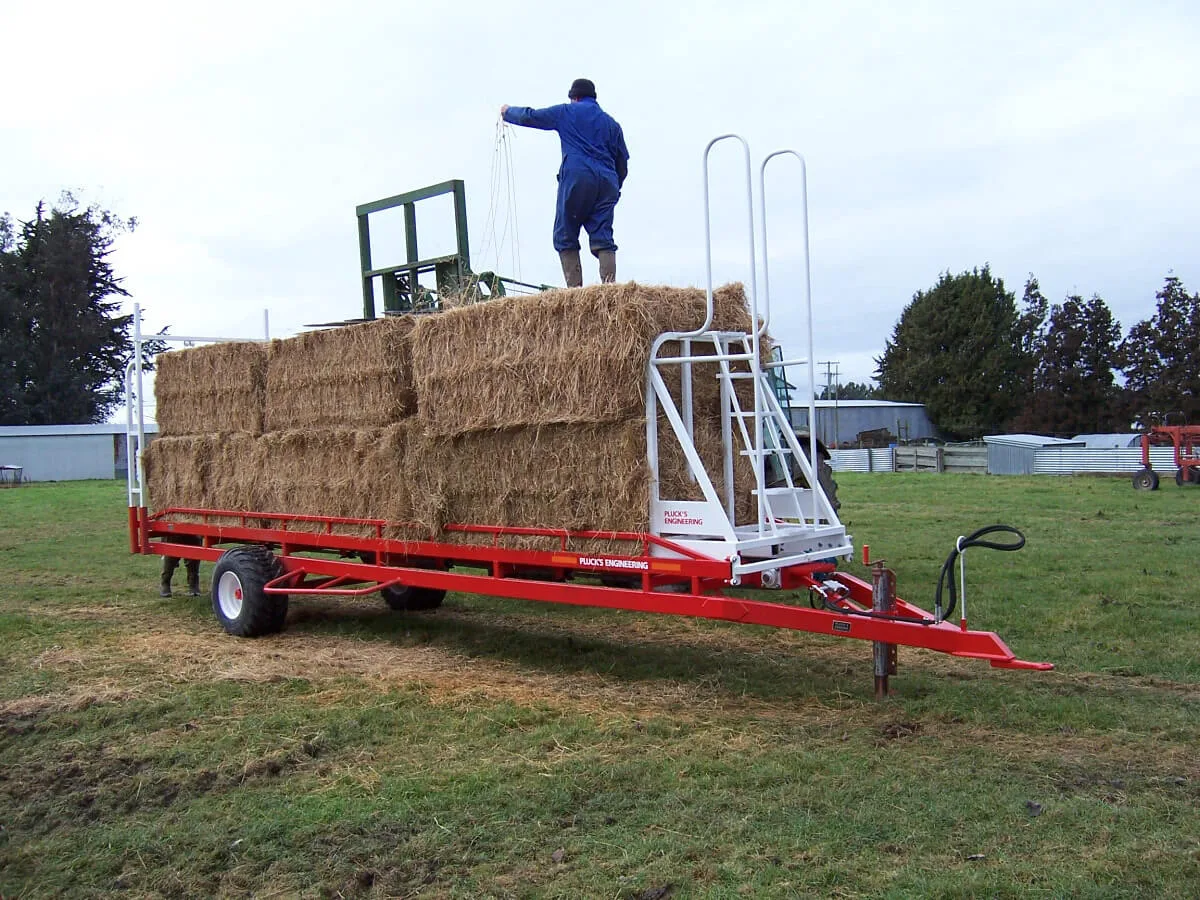

The Bale feeders can carry and feed out any type of Big or Medium square bale. You simply load the deck with your tractor or front end loader of some sort, then access the deck via the stairs and walkway to cut all the strings and leave them (the strings) in the yard so no risk of strings ending up in the paddock. Then travel to your paddock and begin feeding out your bales by engaging the hydraulic the pusher frame at the front of the trailer, which travels very slowly along its tracks towards the back, And in doing so quietly pushes your bales off the rear edge one slab at a time as they break off from the bales they were part of.

The Spring loaded heavy duty Tedder fingers fixed to the vertical and overhead beams at the rear of the trailer ensure that only the slabs of the bale that have been pushed past the Tedder fingers reach can fall off, just like a deck of cards standing vertically getting slowly pushed over the edge of a table one card at a time.

By controlling your tractor and trailer travel speed to a good fast walking pace you will create a 2 to 3 Meter gap between the bale slabs as they fall.

Also they can feed out any width of bale from Medium Square at 850mm wide up to Big Square at 1.250 Meters wide and any height.


There's nothing worse than machinery letting you down at the critical moment. Don't settle for imitations.

Call today on 0800 758 257 or click the button to send an enquiry.
