Dairy Effluent Screening Plants

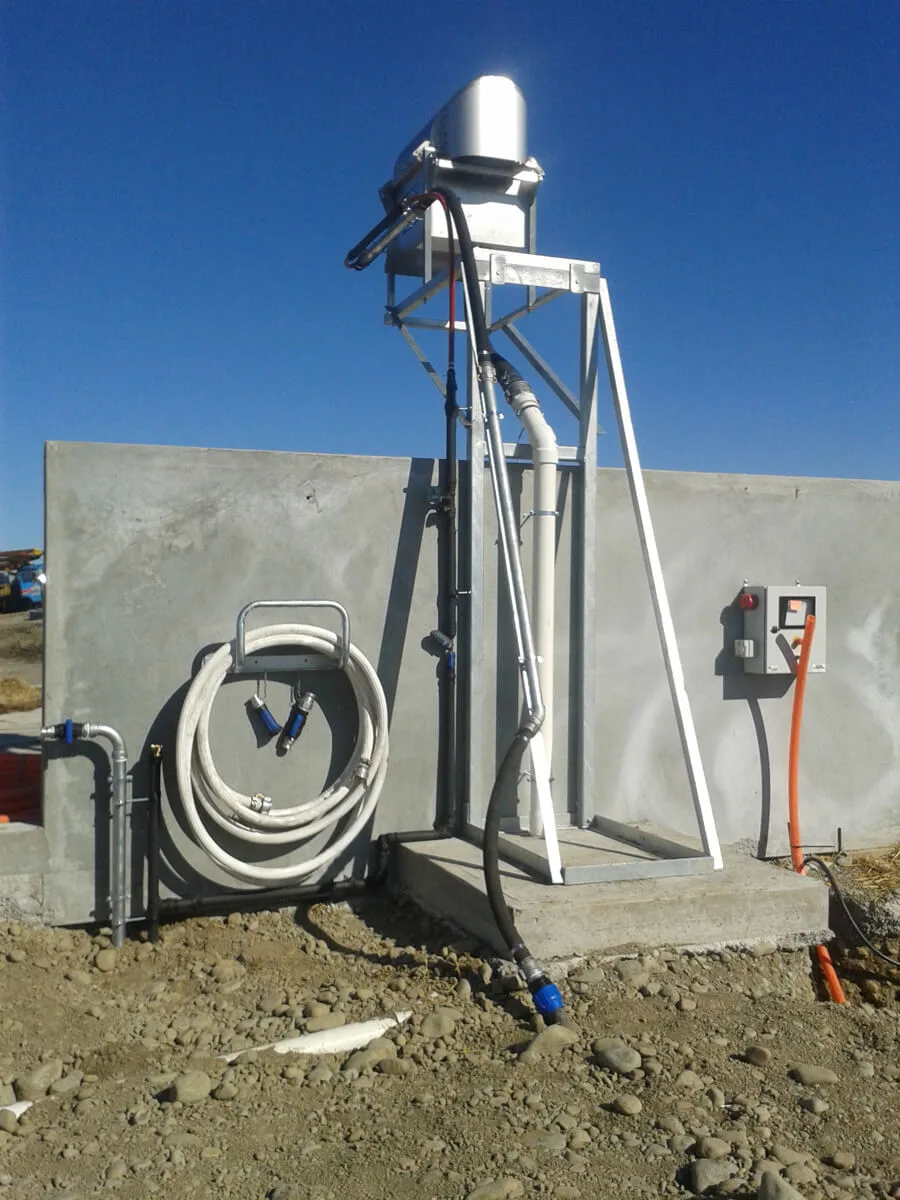

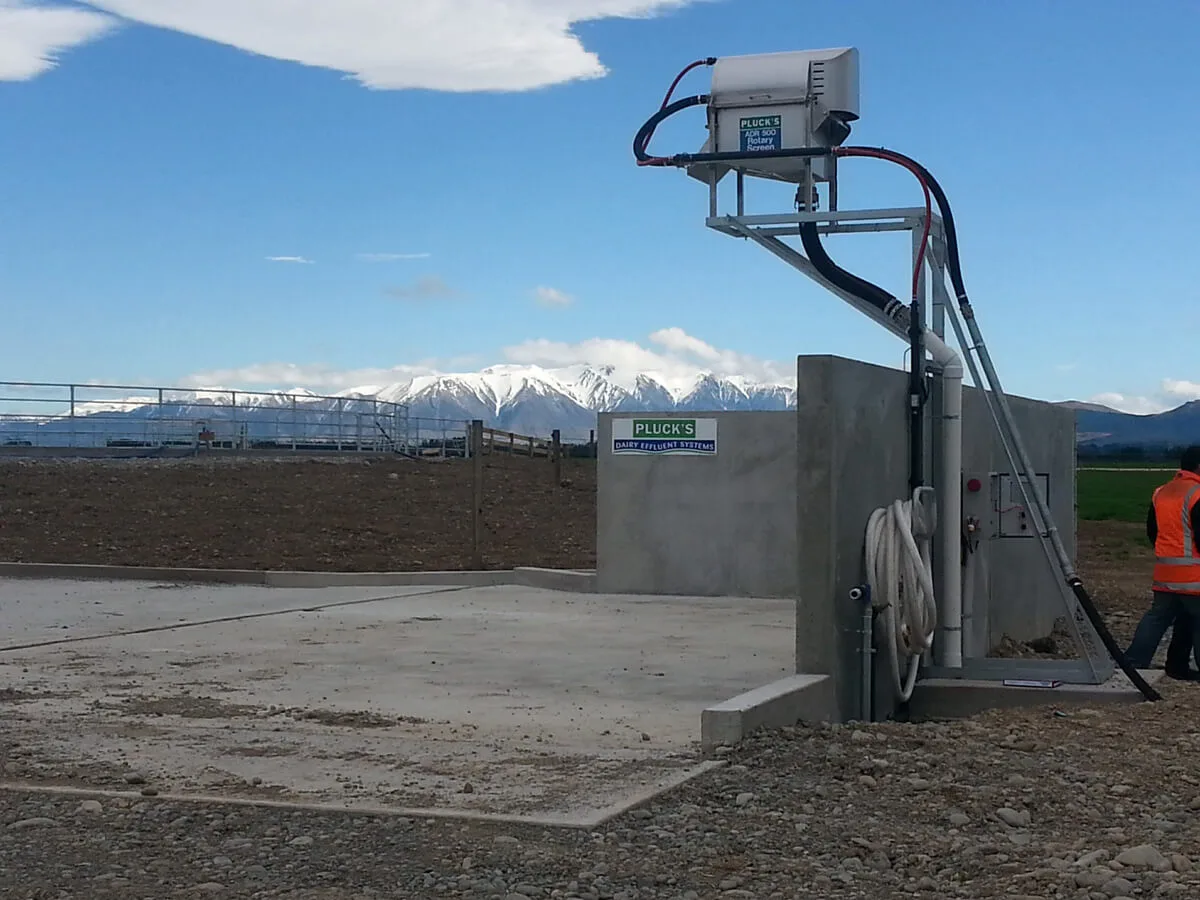

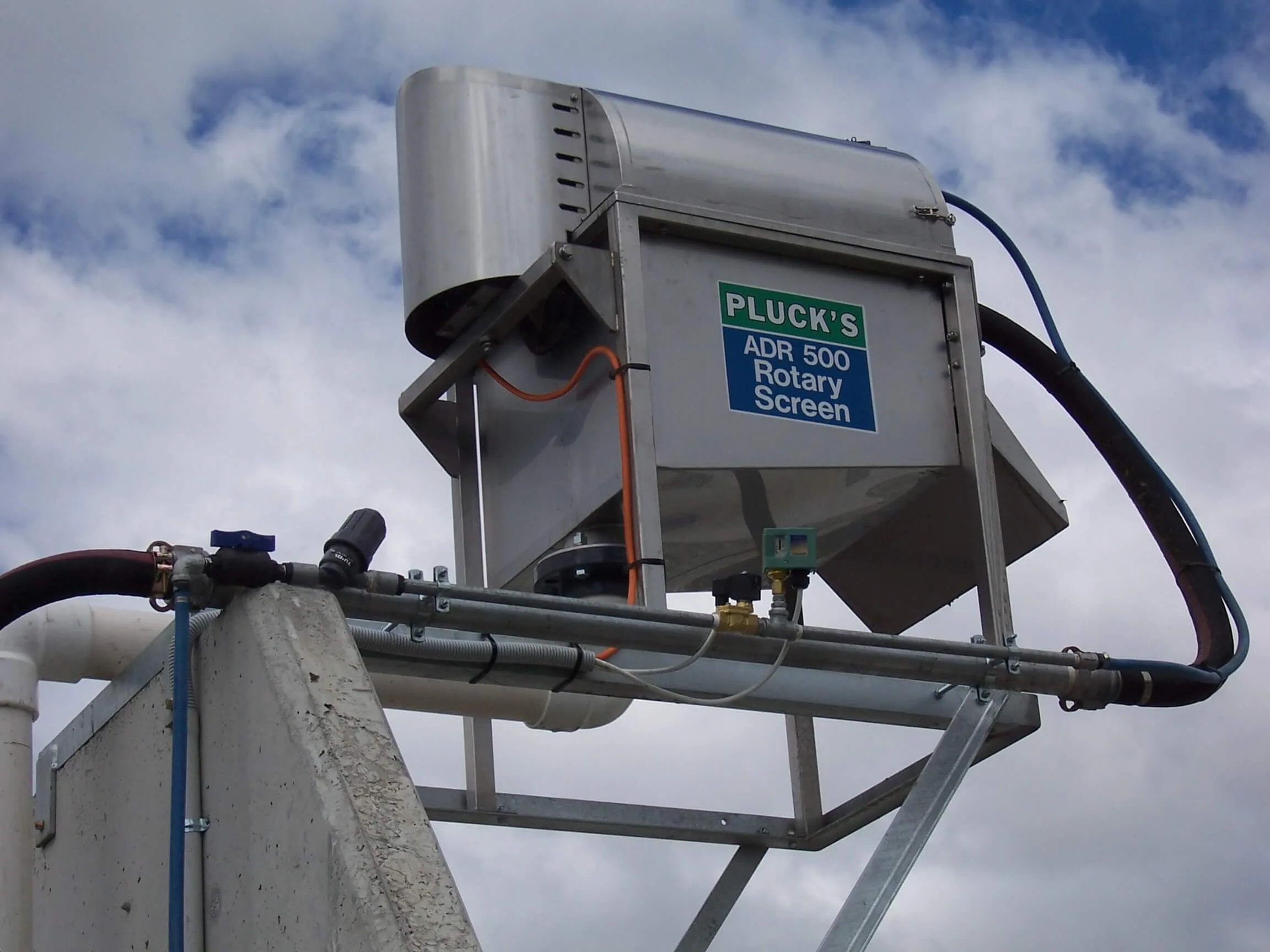

Rotary-drum type dairy effluent wastewater treatment plant screen with system control panel:

  • Best plant for light dairy effluent screening plant applications
    (with solids content up to 5%).
  • Fine screening ability down to 1mm.
  • High throughput - up to 30m³/hr (8 litres/sec).
  • Plc based panel for automatic system control and monitoring.
  • Non-abrasive screening action for low wear-and-tear.
  • Very low power consumption – just 0.4kW.
  • Clog resistant wedge-wire screen.
  • Internal fresh water wash system that is self-cleaning.
  • Stainless-steel construction for protection against corrosion.
  • Simple to operate with user-friendly controls.
  • Comprehensive monitoring of critical components for reliable operation.
  • Low maintenance with 2-year warranty.

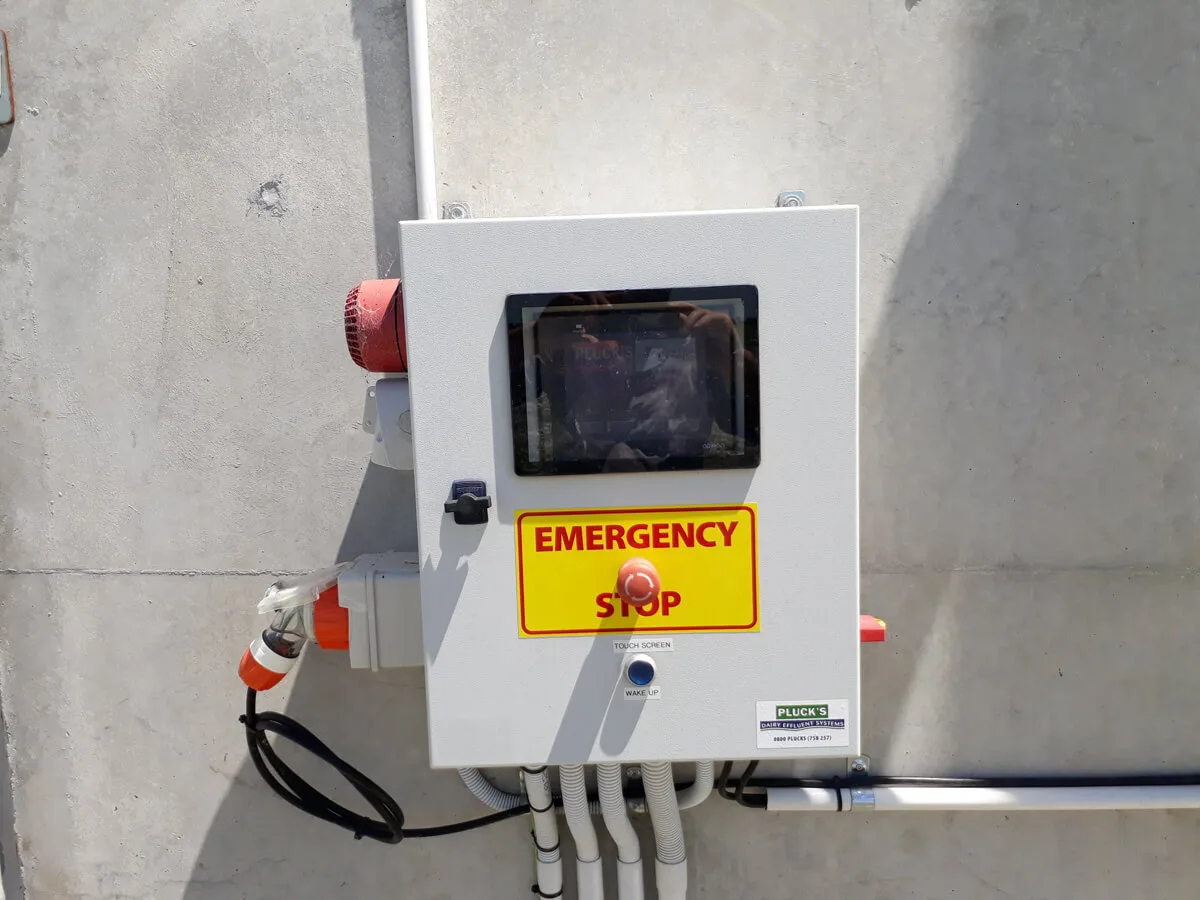

System control panel supplied with the screen as standard. This houses all motor switch-gear and controls for the entire screening system (i.e. effluent screen, transfer-pump, and primary-pond stirrer).


2 Year

Pluck's effluent stirrers assure years of reliable service and come with a 24-month Manufacturer's Warranty.
